Designed for Efficiency, Quality and Reliability

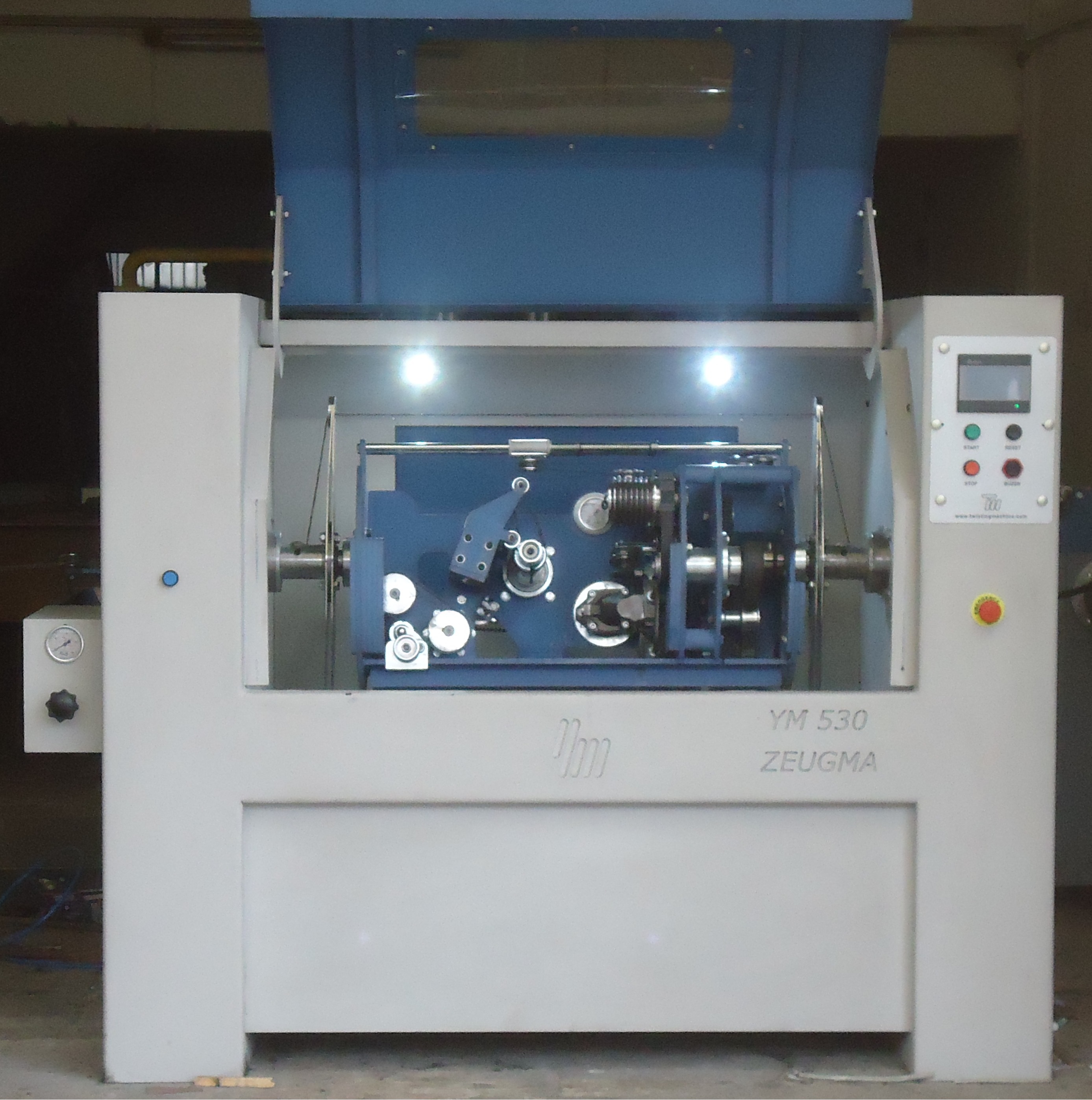

The Cirmantech YM530 is not just a twisting machine - it's a powerhouse that maximizes the
efficiency of your production line. With quieter operation, greater stability, and lower energy
consumption than its competitors, it's a smart investment for your factory.
- Superior Product Quality: The advanced hydraulic tension control system
sets the standard in product quality by perfectly adjusting tension even on the most
delicate yarns up to 100,000 denier.
- Maximum Operational Efficiency: Adjust S/Z twist direction, speed, and
production length in seconds via the intuitive touchscreen PLC. Features like automatic stop
and pneumatic lid minimize bobbin change and maintenance times.
- Low Operating Cost: The optimized 7.5 kW motor and friction-reducing
components significantly reduce energy consumption, lowering your operating costs.
- Uninterrupted and Safe Production: On a robust, vibration-free chassis,
safety sensors instantly stop production when yarn breaks or the lid opens, protecting both
your operator and machine.
General Features
- Outside-in feed twisting machine.
- Can wind with or without bobbins.
- Capable of S and Z twist.
- 250 mm (10") cam with 150 mm traverse for winding.
- Gears available for 150 mm winding length.
- Hydraulic-assisted yarn balloon control.
- External hydraulic-assisted balloon, visually adjustable via pressure gauge.
- Pneumatic piston for automatic lid opening/closing.
- Automatic stop when yarn breaks.
- Touchscreen control panel.
- Machine speed and winding length adjustable from control screen.
- Speed can be synchronously increased/decreased from control panel.
- Three-legged winding spindle with open/close mechanism.
- Total motor power: 7.5 kW.
- LED interior lighting.
- Low energy consumption.
- High-capacity production.
- Machine dimensions (WxDxH): 1000 mm x 1400 mm x 2000 mm.
Technical Specifications
| Type |
YM530 ZEUGMA OUTSIDE-IN FEED TWISTING MACHINE |
| Winding Diameter |
260 MM |
| Winding Length |
250 MM |
| Winding Capacity |
6 KG |
| Motor Power |
7.5 KW |
| Winding System |
HYDRAULIC ASSISTED |
| Twist Denier Range |
10,000 - 100,000 DENIER |
| Twist Range |
20-50 S-Z |
| Winding Style |
WITH OR WITHOUT BOBBIN |
| Twisting Speed |
6000 RPM VARIABLE |
Application Areas
- Agricultural Twines and Baler Twines
- Packaging and Tying Twines
- Main Yarns for Rope Production (Rope Strands)
- Twisted Industrial Yarns and Twines
- Technical Textiles and Industrial Fibers
- Ply-Twisting Applications
