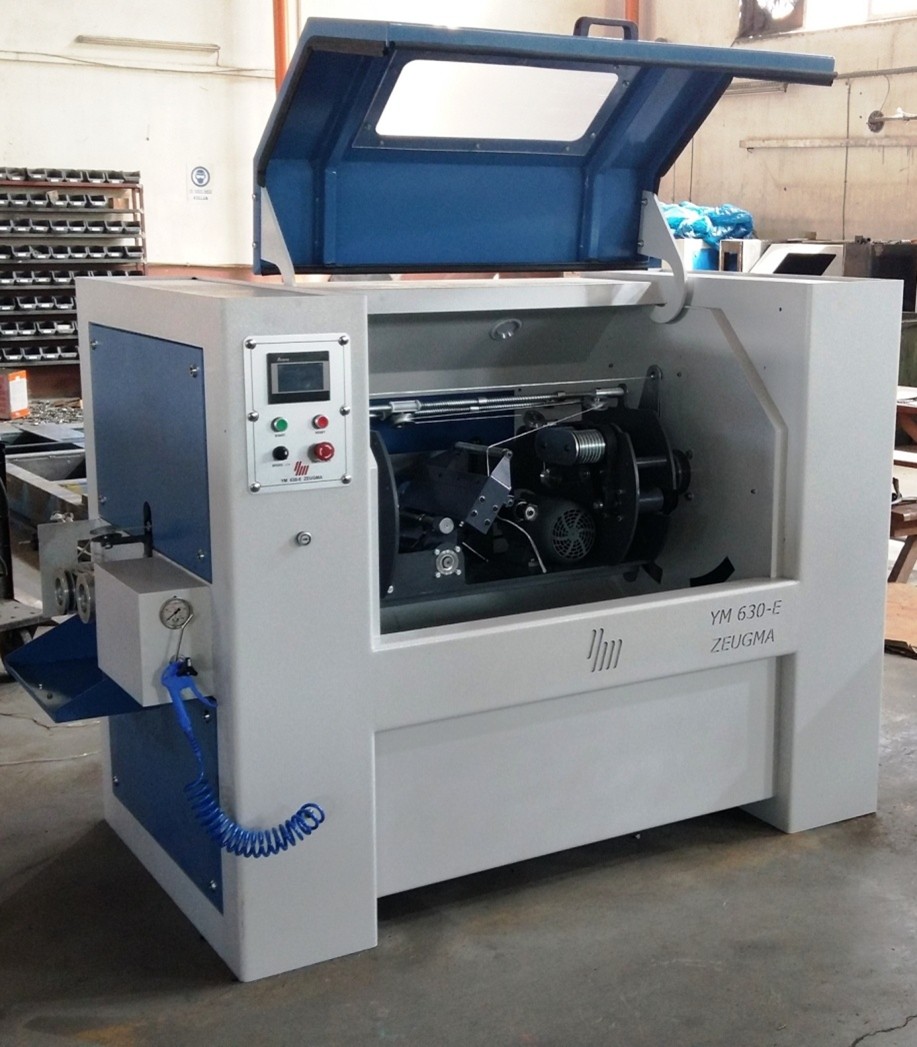

Digital Precision, Superior Quality: YM630E Torque Control Technology
The Cirmantech YM630E sets a new standard in twisting technology by combining power with digital
control. Thanks to its torque-controlled motor that directly manages the winding process, you
achieve perfect repeatability and flawless yarn quality in your production.
- Perfect Winding Quality: The advanced torque-controlled AC motor adjusts
yarn tension with millimetric precision throughout winding. The result? Flawless,
homogeneous yarn packages with the same perfection every time.
- Full Control, Easy Operation: Take full control of the production process
by adjusting not only the machine speed but also the "winding torque tension" directly via
the large touchscreen PLC display.
- Synchronized Power: The dual-motor synchronized operation system performs
twisting and winding operations in perfect harmony, providing stability and consistency even
at the highest speeds.
- Flexible and Efficient: Instantly adapts to different production demands
with the ability to work both with and without bobbins, and the flexibility to perform S/Z
twisting.
General Features
- Outside-in feed twisting machine.
- Can wind with or without bobbins.
- Can perform S and Z twist.
- Twist gears for 20 to 200 twists per meter are optionally provided.
- Hydraulically supported yarn ballooning control.
- External hydraulically supported ballooning is visually adjusted via manometer.
- Cover opens and closes automatically via pneumatic piston.
- Automatically stops on yarn break.
- Winding spindle movement is powered by a torque-controlled AC motor.
- Two motors work synchronously in the machine.
- Control panel is a touchscreen.
- Machine speed, winding torque tension, and winding meters can be adjusted from the control
screen.
- Speed can be synchronously increased or decreased via the control panel.
- Winding spindle has a three-leg opening/closing operation style.
- Total motor power is 9 kW.
- LED interior lighting is available.
- Provides low energy consumption.
- Suitable for high capacity production.
- Machine dimensions (WxHxD) are 1000 mm x 1400 mm x 2000 mm.
Technical Specifications
| Type |
YM630-E OUTSIDE-IN FEED TORQUE CONTROLLED WINDING |
| Winding Diameter |
320 MM |
| Winding Length |
300 MM |
| Winding Capacity |
10.75 KG |
| Motor Power |
7.5 kW |
| Winding System |
TORQUE CONTROLLED AC MOTOR |
| Motor Power Transmission |
SLIP RING CARBON BRUSH |
| Twist Range |
20-200 S-Z |
| Winding Style |
WITHOUT BOBBIN |
| Twisting Speed |
7000 RPM VARIABLE |
| Twist Range (Denier) |
10,000 - 60,000 DENIER |
Application Areas
- Cable Filler Yarns
- Main Strands for Industrial Rope Production
- Marine and Fishing Rope Yarns
- Heavy-Duty Industrial Twines
- Technical Textile and Geotextile Applications
- Lifting Slings and Heavy-Duty Nets
