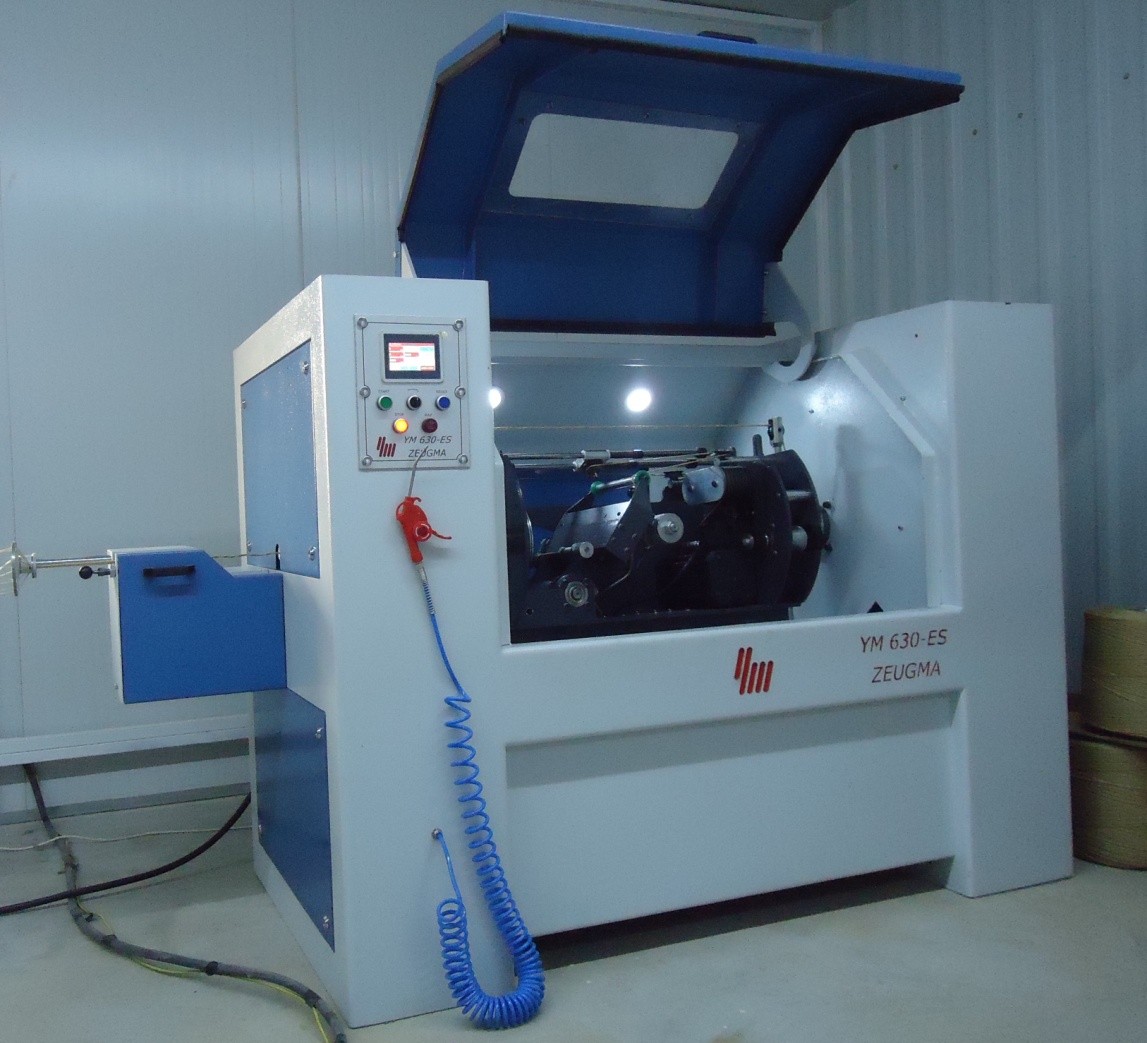

The Pinnacle of Twisting Technology: YM630ES Servo Precision
The Cirmantech YM630ES represents the highest point achievable in industrial twisting. Combining
an advanced servo motor with a precise torque control system, this machine offers zero defects
and absolute consistency even in your most challenging and valuable yarns. If you are looking
for full automation, maximum efficiency, and industry-leading quality in your production
process, the YM630ES is designed for you.
- Unrivaled Servo Precision: The advanced servo motor instantly adjusts the
twisting and winding speed, providing unprecedented stability and control even at the
highest speeds. This brings product quality to its peak, especially for high-value technical
yarns.
- Intelligent Torque Control: The intelligent torque control that directly
manages the winding spindle movement guarantees the same density and tension in every layer
of the yarn package. Result: Perfect-shaped, non-unwinding, flawless bobbins.
- Maximum Production Flexibility: Adapt to different package sizes in seconds
with interchangeable 6" and 10" winding cams. Respond instantly to any order with the S/Z
twist direction easily changeable from the touchscreen.
- Full Automation and Intuitive Management: Manage machine speed, winding
torque, production meters, and all other critical settings at your fingertips via the large
touchscreen PLC panel. YM630ES simplifies complex operations, maximizing operator comfort
and production efficiency.
General Features
- Outside-in feed twisting machine.
- Can wind with or without bobbins.
- Can perform S and Z twist.
- 6"-10" winding cams are available.
- Twist gears for 20 to 200 twists per meter are available.
- Hydraulically supported yarn ballooning control.
- External hydraulically supported ballooning is visually adjusted via manometer.
- Cover opens and closes automatically via pneumatic piston.
- Automatically stops on yarn break.
- Winding spindle movement is powered by a torque-controlled AC motor.
- Two motors work synchronously in the machine.
- Control panel is a touchscreen.
- Machine speed, winding torque tension, and winding meters can be adjusted from the control
screen.
- Speed can be synchronously increased or decreased via the control panel.
- Winding spindle has a three-leg opening/closing operation style.
- Total motor power is 9 kW.
- LED interior lighting is available.
- Provides low energy consumption.
- Suitable for high capacity production.
- Machine dimensions (WxHxD) are 1050 mm x 1450 mm x 2265 mm.
Technical Specifications
| Type |
YM630-ES OUTSIDE-IN FEED SERVO TORQUE CONTROLLED WINDING |
| Winding Diameter |
360 MM |
| Winding Length |
300 MM |
| Winding Capacity |
12.00 KG |
| Motor Power |
9 kW |
| Winding System |
TORQUE CONTROLLED AC MOTOR |
| Motor Power Transmission |
SLIP RING CARBON BRUSH |
| Twist Range |
20-200 S-Z |
| Winding Style |
� 60 MM WITHOUT BOBBIN |
| Twisting Speed |
7000 RPM VARIABLE |
| Twist Range (Denier) |
5,000 - 100,000 DENIER |
Application Areas
- High-Performance Technical Textiles
- Composite Yarns for the Aerospace and Automotive Industries
- Industrial Sewing and Big-Bag (FIBC) Yarns
- All Multi-Ply Twisting Applications Requiring Precision
- Cable Filler and Reinforcement Yarns
- Heavy-Duty Industrial Twines and Rope Strands
