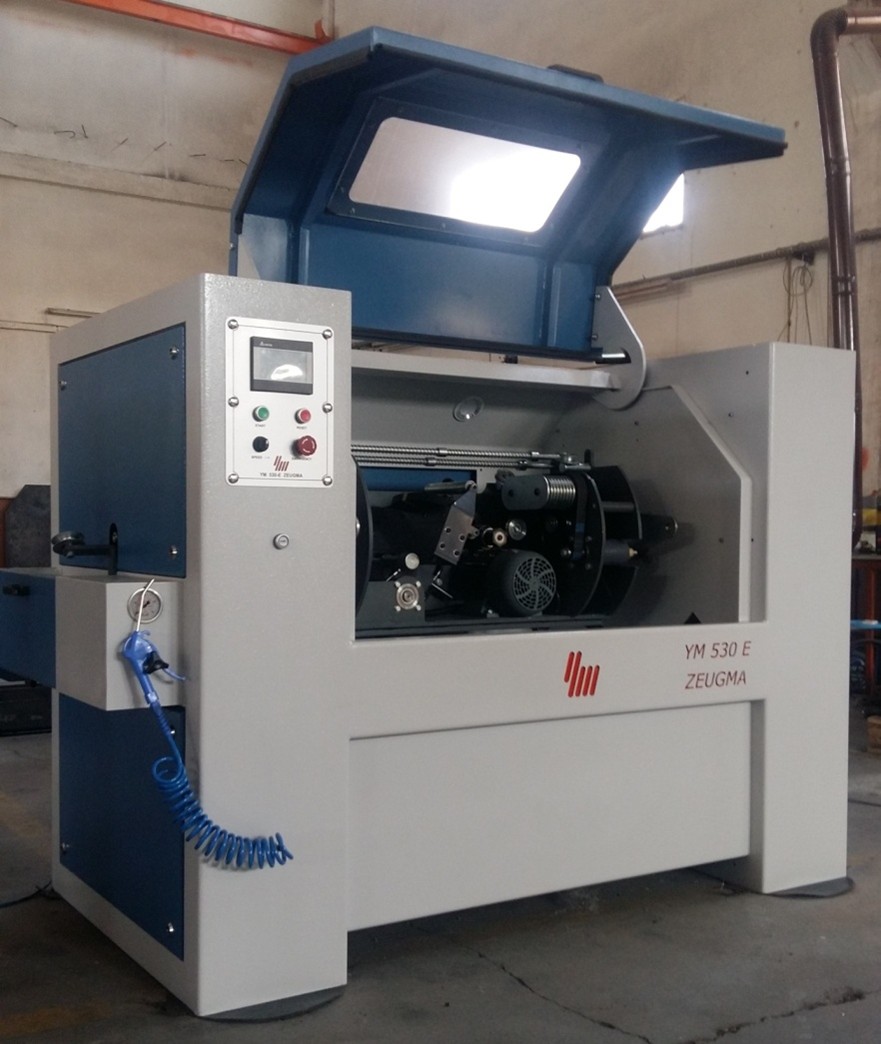

Digital Control, Flawless Results: YM530E
The Cirmantech YM530E is the ideal solution for those seeking digital precision and consistency
in production. Thanks to its torque-controlled motor, it guarantees the same tension and quality
with every winding, while increasing your efficiency with its easily managed structure via the
PLC screen.
- Precise Torque Control: The torque-controlled AC motor, which directly
controls the winding spindle movement, precisely adjusts the yarn tension throughout
production, creating flawless, identical quality yarn packages every time.
- User-Friendly PLC Panel: Easily adjust machine speed, production meters,
and torque values on the large touchscreen. All control is at your fingertips.
- Flexible Production Capability: Instantly adapts to different production
demands with the ability to work both with and without bobbins, and the flexibility to
perform S/Z twisting.
- Reliable and Efficient: The synchronized dual-motor system provides
stability even at high speeds, while features like yarn break sensors and pneumatic cover
offer a safe and uninterrupted production environment.
General Features
- Works on the two-for-one twisting principle.
- Outside-in feed twisting machine.
- Twists yarns in the 5,000 - 60,000 denier range.
- Can make 20 to 200 twists per meter.
- Twisting arm speed is 3,500 RPM.
- Twisting speed is 7,000 RPM.
- Winding capacity is 280 mm x 250 mm.
- Winding spindle diameter is 60 mm.
- Can wind with or without bobbins.
- Winding spindle movement is driven by a torque-controlled AC motor.
- Machine twisting arm and winding spindle movements are driven by separate motors.
- Has a torque-controlled winding spindle motor.
- Twisting arm motor is 7.5 kW AC.
- Machine operation is controlled via settings on the PLC control panel.
- Machine automation equipment is Delta and ABB brand.
- Machine can perform S and Z twist.
- External yarn ballooning control is hydraulically supported.
- LED interior lighting is available.
- Pneumatically supported automatic opening/closing cover.
- Meter counter, motor speeds, and torque information are available on the PLC screen.
- Has a closed cabin design.
Technical Specifications
| Type |
YM530-E OUTSIDE-IN FEED TORQUE CONTROLLED WINDING |
| Winding Diameter |
260 MM |
| Winding Length |
250 MM |
| Winding Capacity |
6 KG |
| Motor Power |
7.5 kW |
| Winding System |
TORQUE CONTROLLED AC MOTOR |
| Motor Power Transmission |
SLIP RING CARBON BRUSH |
| Twist Range |
20-200 S-Z |
| Winding Style |
WITHOUT BOBBIN |
| Twisting Speed |
7000 RPM VARIABLE |
| Twist Range (Denier) |
10,000 - 60,000 DENIER |
Application Areas
- Cable Filler Yarns
- Main Strands for Industrial Rope Production
- Marine and Fishing Rope Yarns
- Heavy-Duty Industrial Twines
- Technical Textile and Geotextile Applications
- Lifting Slings and Heavy-Duty Nets
Get Your Quote &
Demo
Contact us for technical specifications, pricing, and on-site demonstration.
